Product information

Description

Podoscope Podiatry Design

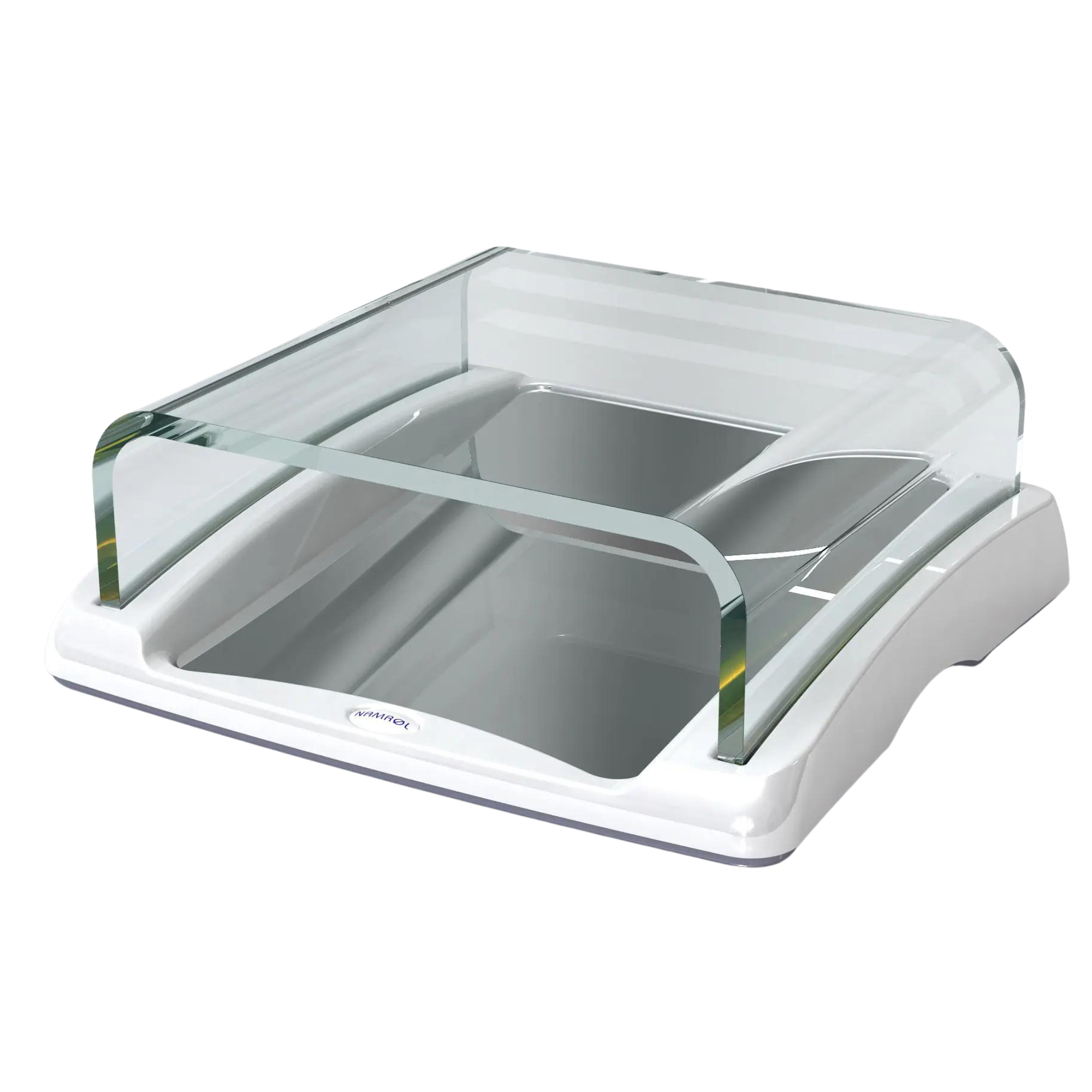

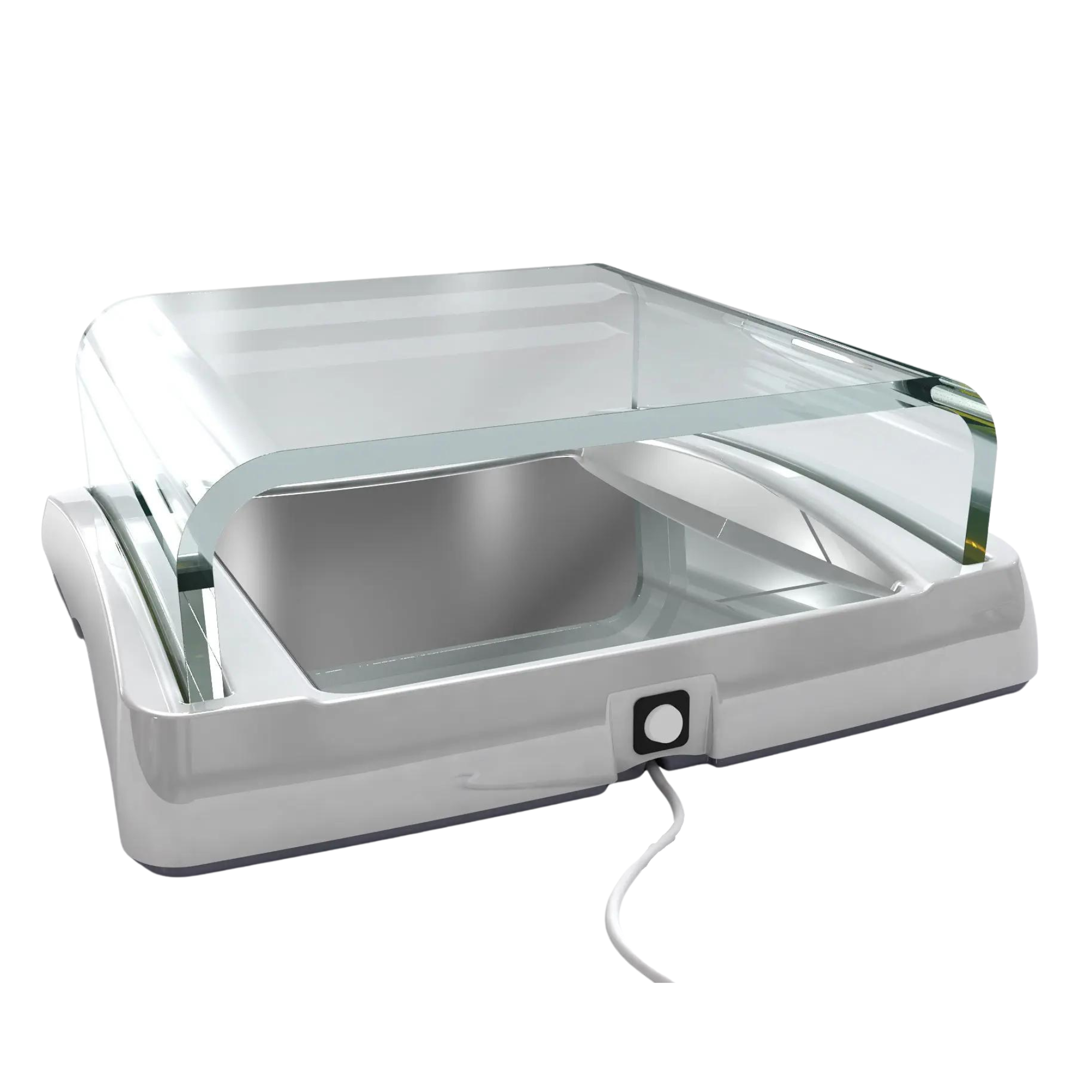

This podoscope has been designed and manufactured to obtain fingerprints using a tilted mirror and is intended for use by professional podiatrists, orthopedists, doctors, etc. for analysis and plantar examination of the foot. It offers the possibility of having a real vision of the foot and highlights the points of greatest and least load.

Recommendation for use:
• The equipment must be used in situations of good stability.
• Do not expose the mirror and glass to impact or impact.
• Make sure the patient does not trip over the front plate.

Podoscope components:
• Fingerprint area in PCO.
• Carrying handle.
• Mirror with ABS base.
• Identification of the CE marking.
• ON/OFF switch.
• Power cord socket.

Technical characteristics :
• Power: 230 Vac single phase / 50Hz
• Machine absorption: 0.15 A
• Lighting: 2 8W fluorescents
• Maximum load: 180 Kg
• Fingerprint capture: green light
• Fingerprint capture mirror: polycarbonate base (not glass)
• Weight of the machine: 8 Kg
• Working dimensions: 380 x 400 mm
• Equipment dimensions: 520 mm x 450 mm x 180 mm H.

Cleaning :
To clean the external surfaces of the podoscope (plastic, painted, polycarbonate parts, etc.), use normal cleaning products that are on sale, checking that the active substances are present in the maximum concentrations indicated:
• Gluteric aldehyde 2%: 10%
• Ethanol 96%: 40%
• Formaldehyde: 0.01%
• Glyoxal: 0.15%
• Propanol: 35%

General instructions:
• Keep the polycarbonate and mirror surface constantly clean, avoid accumulation of fingerprints and mirror dust.
• Avoid pouring liquids into the work area; In case of accident, dry as soon as possible.
• Compliance with Directive 93/42/EEC relating to medical devices of 06/14/93 and subsequent amendment 2007/47/EC Class 1, providing maximum safety to the user, patient and patient environment.

Do not exceed the working conditions indicated in the "Technical characteristics" section.
Do not remove the labels on the CE marking device. If damaged or replaced, they will not cover current warranties.
